JUNIPER FIREWALL

SRX300 Firewall

SRX300 next-generation firewall connects and secures small branch or retail offices and consolidates security, SD-WAN, routing, and switching in a small desktop device.
Firewall performance (max) 1.9 Gbps
IPS performance——200 Mbps
VPN performance——336 Mbps
Maximum concurrent sessions——64,000

SRX320 Firewall

SRX300 Firewall

SRX320 Firewall

SRX320 next-generation firewall connects and secures small branch or retail offices and consolidates security, routing, switching, and WAN connectivity in a small desktop device.
Firewall performance (max)——1.9 Gbps
IPS performance——200 Mbps
VPN performance——336 Mbps
Maximum concurrent sessions——64,000

SRX340 Firewall

SRX320 Firewall

The SRX340 next-generation firewall connects and secures midsized, distributed enterprise branch offices. It consolidates security, routing, switching, and WAN connectivity in a convenient 1U form factor.
Firewall performance (max)
4.7 Gbps
IPS performance
400 Mbps
VPN performance
733 Mbps
Maximum concurrent sessions
256,000

SRX345 Firewall

SRX340 Firewall

SRX345 Firewall

The SRX345 next-generation firewall is well suited for midsized and large distributed enterprise branch offices. It consolidates security, routing, switching, and WAN connectivity in a 1U form factor.
Firewall performance (max)
5 Gbps
IPS performance
600 Mbps
VPN performance
977 Mbps
Maximum concurrent sessions
375,000

SRX380 Firewall

SRX340 Firewall

SRX345 Firewall

SRX380
The SRX380 next-generation firewall is a high-performance, secure SD-WAN gateway with superior and reliable WAN connectivity. It integrates security, routing, and switching for distributed enterprise offices in a single device.
Firewall performance (max)
20 Gbps
IPS performance
2 Gbps
VPN performance
4.4 Gbps
Maximum concurrent sessions
380,000

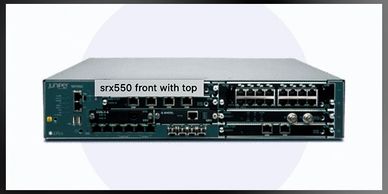

SRX550 Firewall

SRX1600 Firewall

The SRX550 next-generation firewall is ideal for securing midsized and large branch locations.
Firewall performance (max)
7 Gbps
IPS performance
800 Mbps
VPN performance
1 Gbps
Maximum concurrent sessions
375,000

SRX1600 Firewall

The SRX1600 1 U, next-generation firewall protects enterprise campus networks and serves as a perimeter firewall in small and midsized data centers. It's power-efficient, delivers 24 Gbps firewall throughput per rack unit, and supports line-rate MACsec encryption.
Firewall performance (max)
24 Gbps
IPS performance
21 Gbps
VPN performance
18 Gbps
Maximum concurrent sessions
2 Million

SRX1500 Firewall

SRX1600 Firewall

SRX1500 Firewall

The SRX1500 is a high-performance, low-latency, next-generation firewall and security services gateway that protects mission-critical networks at enterprise campuses, regional headquarters, and large branch offices.
Firewall performance (max)
9.2 Gbps
IPS performance
3.3 Gbps
VPN performance
4.5 Gbps
Maximum concurrent sessions
2 million

SRX2300 Firewall

SRX1500 Firewall

The power-efficient, 1 U SRX2300 Firewall protects small and midsized campus, data center, and regional headquarters networks. It delivers 39 Gbps firewall throughput per rack unit, supports line-rate MACsec, and operationalizes zero trust networkwide.
Firewall performance (max)
39 Gbps
IPS performance
35 Gbps
VPN performance
36 Gbps
Maximum concurrent sessions
5 Million

SRX4300 Firewall

SRX2300 Firewall

SRX4300 Firewall

The SRX4300 is a power-efficient, 1 U next-generation firewall that protects small and midsized campus, data center, and regional headquarters networks. It's compact, delivers up to 90 Gbps firewall throughput per rack unit, and supports MACsec at line rate.
Firewall performance (max)
90 Gbps
IPS performance
45 Gbps
VPN performance
75 Gbps
Maximum concurrent sessions
10 Million

SRX4700 Firewall

SRX2300 Firewall

SRX4300 Firewall

The SRX4700 power-efficient, 1 U next-generation firewall (NGFW) delivers the industry’s highest firewall performance at throughput speeds of up to 1.4 Tbps per rack unit. It also supports 400 Gbps wire-speed MACsec to safeguard data in motion. 
Firewall performance (max)
1.4 Tbps
IPS performance
110 Gbps
VPN performance
90 Gbps
Maximum concurrent sessions
60 million

SRX4100 Firewall

SRX4100 is a high-performance, low-latency, next-generation firewall for small and mid-sized enterprise campuses and data centers, and regional headquarters.
Firewall performance (max)——40 Gbps
IPS performance——13.9 Gbps
VPN performance——14.8 Gbps
Maximum concurrent sessions——5 million

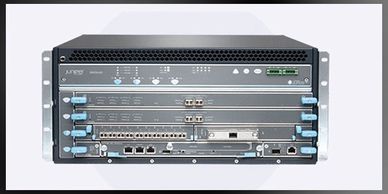

SRX5400 Firewall

SRX4100 Firewall

SRX5400 is a next-generation firewall ideal for securing large enterprise data centers, service provider infrastructure, and public sector networks.
Firewall performance (max)——960 Gbps
IPS performance——172 Gbps
VPN performance——188 Gbps
Maximum concurrent sessions——91 million

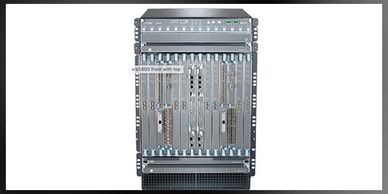

SRX5800 Firewall

SRX4100 Firewall

SRX5800 Firewall

The massive performance and scalability of the SRX5800 next-generation firewall make it ideal for securing large enterprise data centers, service provider infrastructure, and public sector networks.
Firewall performance (max)——3.36 Tbps
IPS performance——638 Gbps
VPN performance——699 Gbps
Maximum concurrent sessions——338 million

FORTINET Next-Generation Firewall (NGFW)

Entry Level （Branch）

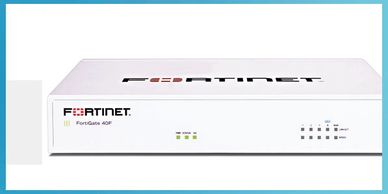

FortiGate FortiWiFi 40F Series

The FortiGate Next-Generation Firewall 40F series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
FG-40F
FG-40F-3G4G
FWF-40F
FWF-40F-3G4G

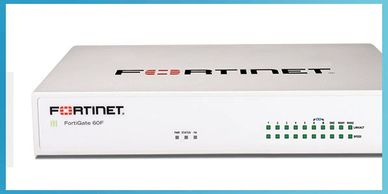

FortiGate FortiWiFi 60F Series

FortiGate FortiWiFi 40F Series

FortiGate FortiWiFi 60F Series

The FortiGate Next-Generation Firewall 60F series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
FG-60F
FG-61F
FWF-60F
FWF-61F

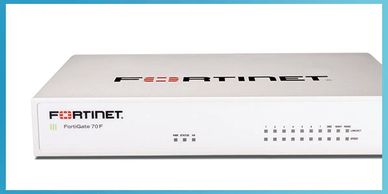

FortiGate 70F Series

FortiGate FortiWiFi 80F Series

FortiGate FortiWiFi 60F Series

The FortiGate Next-Generation Firewall 70F series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
FG-70F
FG-71F

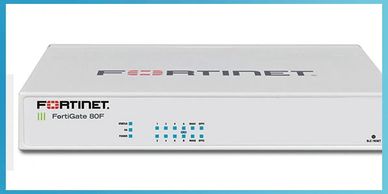

FortiGate FortiWiFi 80F Series

The FortiGate Next-Generation Firewall 80F series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
FG-80F / FG-80F-POE / FG-80F-Bypass
FG-81F / FG-81F-POE /FG-80F-DSL
FWF-81F-2R-POE
FWF-81F-2R-3G4G-POE
FWF-80F/81F-2R
FWF-80F/81F-2R-3G4G-DSL

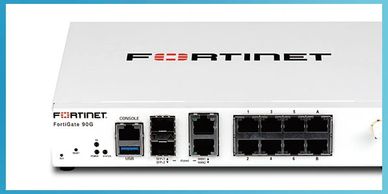

FortiGate 90G Series

FortiGate FortiWiFi 80F Series

The FortiGate Next-Generation Firewall 90G series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
FG-90G
FG-91G

Mid-Range (Campus)

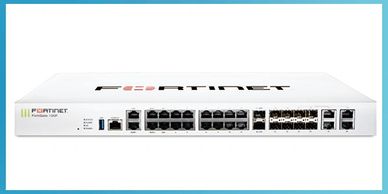

FortiGate 100F Series

AI/ML Security and Deep Visibility
The FortiGate 100F Series NGFW combines AI-powered security and machine learning to deliver Threat Protection at any scale. Get deeper visibility into your network and see applications, users, and devices before they become threats.
FG-100F
FG-101F

FortiGate 120G Series

FortiGate 100F Series

FortiGate 120G Series

Interfaces
2x GE RJ45 HA and Management Ports
16x GE RJ45 Ports
4x 10GE SFP+ FortiLink Slots
8x GE SFP Ports

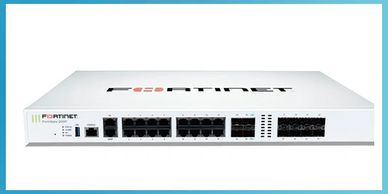

FortiGate 200F Series

FortiGate 120G Series

FG-200F
18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, NP6XLite and CP9 hardware accelerated.

FG-201F
18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, NP6XLite and CP9 hardware accelerated, 480GB onboard SSD storage.

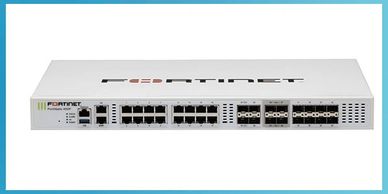

FortiGate 400F Series

FortiGate 200F Series

FortiGate 400F Series

FG-400F
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 8 x 10GE SFP+ slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies.

FG-401F
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 8 x 10GE SFP+ slots, SPU NP7 and CP9 hardware accelerated, 2x 480GB onboard SSD storage, dual AC power supplies.

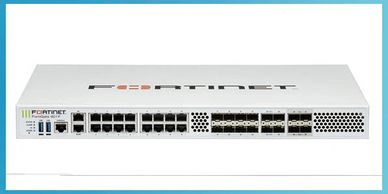

FortiGate 600F Series

FortiGate 200F Series

FortiGate 400F Series

FG-600F
4x 25G SFP28 slots, 4 x 10GE SFP+ slots, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies.

FG-601F
4x 25G SFP28 slots, 4 x 10GE SFP+ slots, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, SPU NP7 and CP9 hardware accelerated, 480GB onboard SSD storage, dual AC power supplies.

High-End (Data Center)

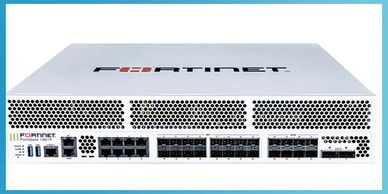

FortiGate 1000F Series

High-End (Data Center)

FG-1000F
2x 100GE QSFP28 slots , 8x 25GE SFP28 slots, 16x 10GE SFP+ slots, 8x 10GE BASE-T RJ45 ports, 1x 1GE MGMT port, 1x 2.5GE HA port, SPU NP7 and CP9 hardware accelerated, dual AC power supplies.
FG-1001F
2x 100GE QSFP28 slots , 8x 25GE SFP28 slots, 16x 10GE SFP+ slots, 8x 10GE BASE-T RJ45 ports, 1x 1GE MGMT port, 1x 2.5GE HA port, SPU NP7 and CP9 hardware accelerated, 960GB SSD onboard storage, dual AC power supplies.

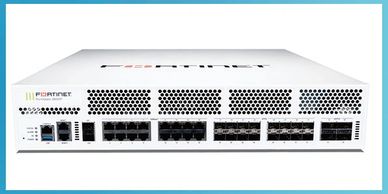

FortiGate 2600F Series

High-End (Data Center)

FortiGate 2600F Series

FG-2600F
4 x 100GE/40GE QSFP28 slots, 16 x 25GE/10GE SFP28 slots, 16 x 10GE RJ45 ports, 2x 10G SFP+ HA slots, 2x 1G MGMT ports, SPU NP7 and CP9 hardware accelerated, and dual AC power supplies.
FG-2600F-DC
FG-2601F
FG-2601F-DC
LIC-FGT-HYPSC-1K2K
Hyperscale Firewall License for FortiGate FG1800F/FG1801F/ FG2600F/ FG2601F Series for hardware acceleration.

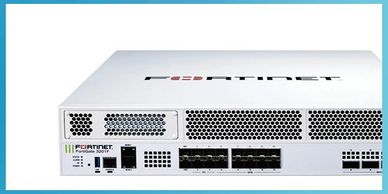

FortiGate 3200F Series

FortiGate 2600F Series

FG-3200F
4x 400 GE QSFP-DD slots, 4x ULL SFP28 ports, and 12x 50 GE SFP56 slots (including 10x ports, 2x HA ports), 2x 10GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, and 2 AC power supplies.
FG-3201F
4x 400 GE QSFP-DD slots, 4x ULL SFP28 ports, and 12x 50 GE SFP56 slots (including 10x ports, 2x HA ports), 2x 10GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, 2 TB SSD onboard storage, and 2 AC power supplies.

FortiGate 4400F Series

FortiGate 3200F Series

FortiGate 4400F Series

FG-4400F
12x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, and AC power supplies.
FG-4400F-DC
FG-4401F
FG-4401F-DC
LIC-FGT-HYPSC
Hyperscale Firewall License for FortiGate FG-4200F/FG4201F Series for acceleration and logging.

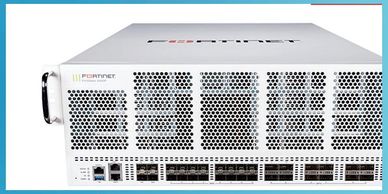

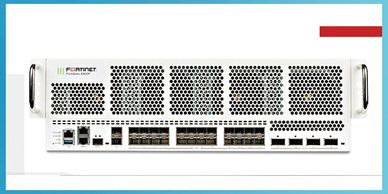

FortiGate 6000F Series

FortiGate 3200F Series

FortiGate 4400F Series

FG-6001F
4 x 100/40GE QSFP28 slots, 24 x 25/10GE SFP+ slots, 2 x 1GE RJ45 management ports,2x 10GE SFP+ HA ports, 1x 10GE SFP+ MGMT port, 2 x 960GB NVMe, and 3 x AC power supplies (3FPC slots enabled by default, upgrade SKU LIC-FG6KF-FPC or FG-10-F6KF01-XXX-12).
FG-6300F
FG-6301F
FG-6500F
FG-6501F

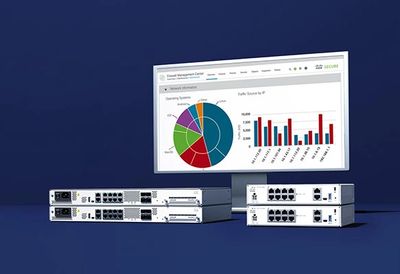

Cisco Secure Firewall

1000 Series

Best for smaller businesses and branch offices.

Cisco Firepower 1010
Cisco Firepower 1120
Cisco Firepower 1140
Cisco Firepower 1150

3100 Series

Enhanced for medium-sized enterprises, with the flexibility to grow in the future.

Cisco Secure Firewall 3105
Cisco Secure Firewall 3110 and 3120
Cisco Secure Firewall 3130 and 3140

4100 Series

Security, speed, and scalability for a powerful data center.

Cisco Firepower 4112
Cisco Firepower 4115
Cisco Firepower 4125
Cisco Firepower 4145

4200 Series

Experience faster threat detection with greater visibility and the agility to safeguard large enterprise data center and campus networks.

Cisco Secure Firewall 4215
Cisco Secure Firewall 4225
Cisco Secure Firewall 4245

9300 Series

Optimized for service providers and high-performance data centers.

Cisco Firepower SM-40
Cisco Firepower SM-48
Cisco Firepower SM-56
